RF Power Amplifier

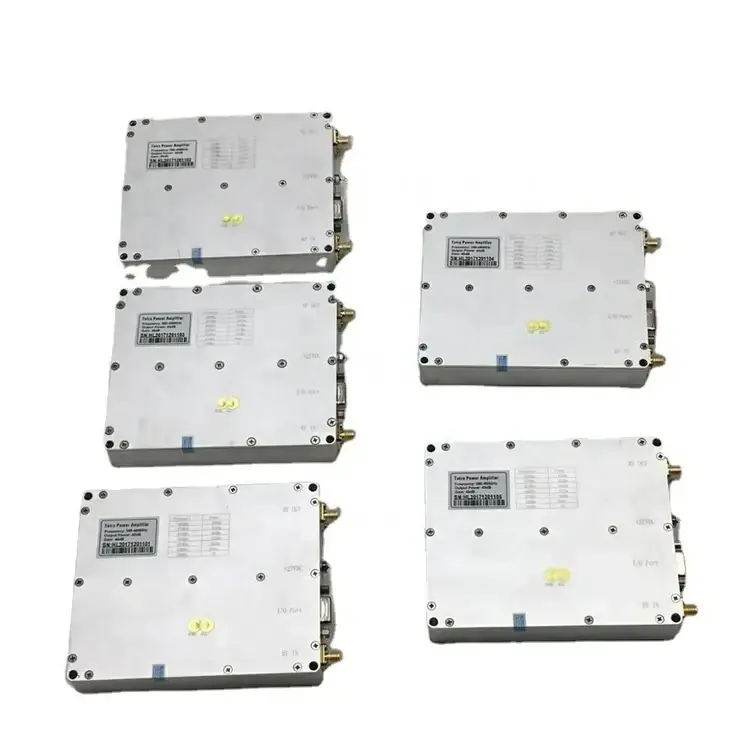

100W 20-500MHz RF Linear Power Amplifier Module

Packaging Details: paper box
Supply Ability: 500 Piece/Pieces per Month

Customized logo: (Min. order 100 pieces)
Customized packaging: (Min. order 100 pieces)
Graphic customization: (Min. order 100 pieces)

Frequency range: 66-88MHz,136-180MHz,200-280MHz,330-380MHz,380-520MHz,700MHz,800MHz,900MHz, 1800Mhz,2100Mhz,2500Mhz+
Can be customized according to the customer's request

Quantity (pieces)	1 – 10	11 – 100	> 100
Lead time (days)	21	30	To be negotiated

Product Feature

Main Features:

High gain and linearity, low anamorphic intermodulation,low resonance and spurious emission
Impedance matching with input and output 50Ω,little stationary wave
Protection on duty cycle of pulse width,power demodulation monitoring output
Module internal temperature monitoring and RF power monitoring output(Analog voltage)
Selectable on-off control, linear working model and high efficiency
Multiplicate designing on telecom interface.

Specifications

Part of the product parameters

Type	Power Amplifier
Model Number	XL-PA-VU-100
Place of Origin	Guangdong China
Product Name	High Power 100W VHF UHF RF Linear Power Amplifier Module
Frequency Range	20-500MHz
Gain	50dB
Input Power	4-14dBm
Output Power	50.8dBm
In-Band Ripple	≤3dB
Input/Output VSWR	≤1.5
Working Voltage	28VDC
RF Input/ Output Ports	SMA-Female
Dimension	21011025 (mm)
