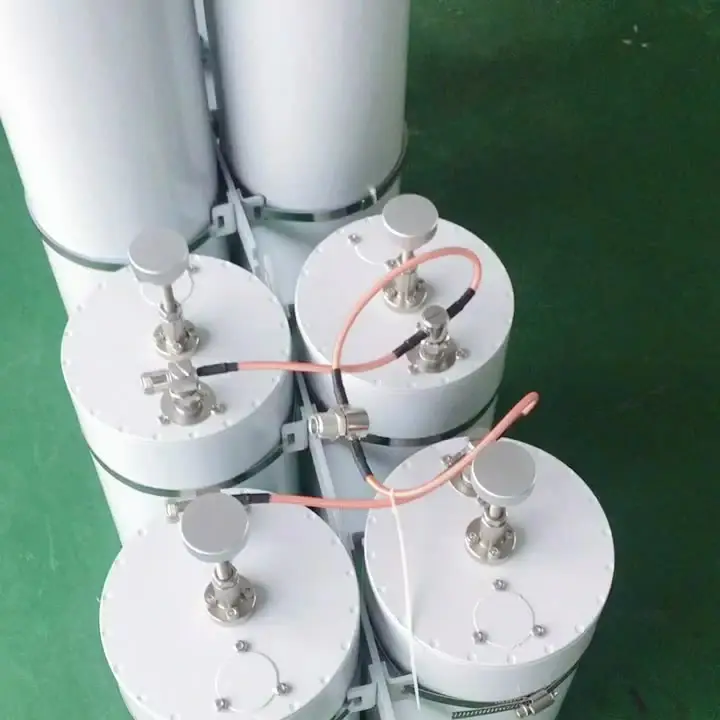

High Power 350w Vhf Cavity Duplexer For Ham Radio Repeater 600khz Offset Cavity Filter Duplexer Combiner

The price needs to be renegotiated

(6 customer reviews)

Quick refunds on orders under US $1,000

  • 30 days easy returns
  • Negotiate the pricing, and shipping
  • OEM, Design Service, Buyer Label Offered

Duplexer

VHF Cavity Duplexer for Ham Radio Repeater

Packaging Details: wooden box
Supply Ability: 300 Piece/Pieces per Month

Quantity (pieces) 1 – 1 2 – 10 11 – 100 > 100
Lead time (days) 14 21 30 To be negotiated

Customized logo: (Min. order 100 pieces)
Customized packaging: (Min. order 100 pieces)
Graphic customization: (Min. order 100 pieces)

Frequency range: 66-88MHz,136-180MHz,200-280MHz,330-380MHz,380-520MHz,700MHz,800MHz,900MHz, 1800Mhz,2100Mhz,2500Mhz+
Working Voltage: AC110~240V or DC12V
Can be customized according to the customer's request

Xinlun-Factory-Supplier-Manufacturer

Specifications

Part of the product parameters

Place of Origin Guangdong China
Model Number XL-PRD-1506-4
Product Name for Ham Radio Repeater
Frequency Range 136-174MHz
Power Rating 350W
Min. Freq Separation 600KHz
Insertion Loss ≤1.5dB
VSWR ≤1.3
Rejection ≥75dB
Connector type N-female
Impedance 50 Ohm
Color White

Purchase details

Shipping

Contact us to negotiate shipping details

Shipping ways:DHL/UPS/FEDEX/EMS

Enjoy On-time Dispatch Guarantee.(Your order is protected by On-time Dispatch Guarantee. Upgrade your protection to On-time Delivery Guarantee by selecting the logistics method with “Guaranteed delivery.”)

Payments

Enjoy encrypted and secure payments.

Transactions made through www.duplexer-filter.com are encrypted, secure, and processed in as quickly as 2 hours. All major currencies are accepted – pay in your local currency to avoid bank conversion fees.

How to pay for customized products

1. Settle details with supplier
Send an inquiry to the supplier about the product you wish to buy and settle the order details.

2. Confirm order
Review and confirm the order terms drafted by the supplier via My orders > Order details.

Returns & Refunds

EFor unfulfilled, missing, or other product issues View details.

Additional information

Weight 30 kg
Dimensions 320 × 310 × 670 mm

6 reviews for High Power 350w Vhf Cavity Duplexer For Ham Radio Repeater 600khz Offset Cavity Filter Duplexer Combiner

  1. addoenoch134

    Hello, I’m making some duplexers (first time) I want to know if the TX and RX duplexers are the same, I mean they have both in TX and RX side an capacitor? because the RX side is opposite of the TX, how to get that reverse?

  2. zelatcol

    I have a combiner with 4 of these cavities in the 88 – 108 MHz band that I need to retune. How do I calculate the length of the cables?

  3. bianco.darci

    What is the valu or specification of Piston tuning capacitor in TPRD-1454?

  4. sv1edz

    Hello sir, band pass cavities are not good for 0,6 MHz spacing because they have very low reject value to so small spacing. This duplexer have about 90 to 100dB reject.

  5. shahmubashir983

    That means that you have very good isolation from TX to RX but nothing to filter the outside RF of the field.

  6. jabacomunicaciones

    Those should not be touched within the readjustment process of the cavities due to changes in frequency?, or if they should be adjusted to achieve an optimal fit?
