Duplexer

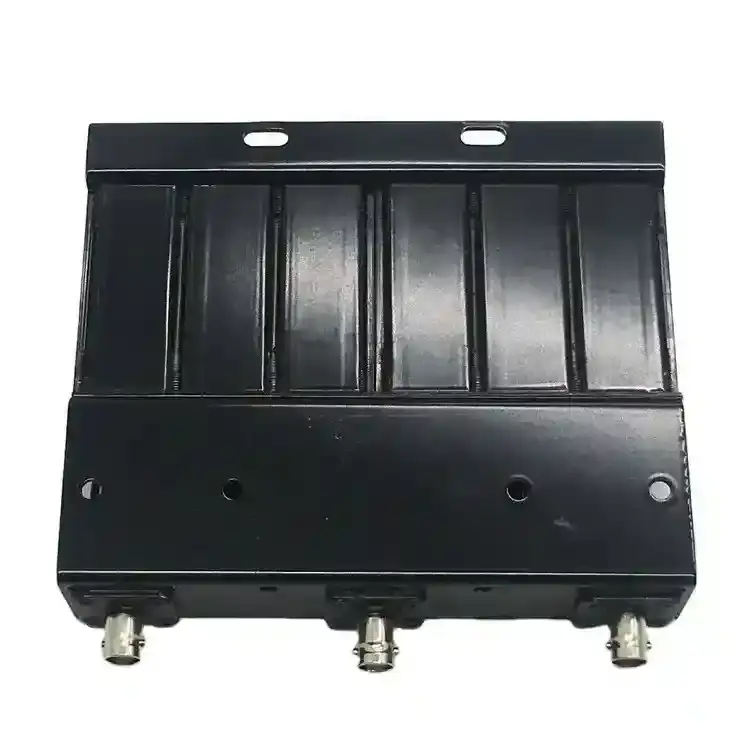

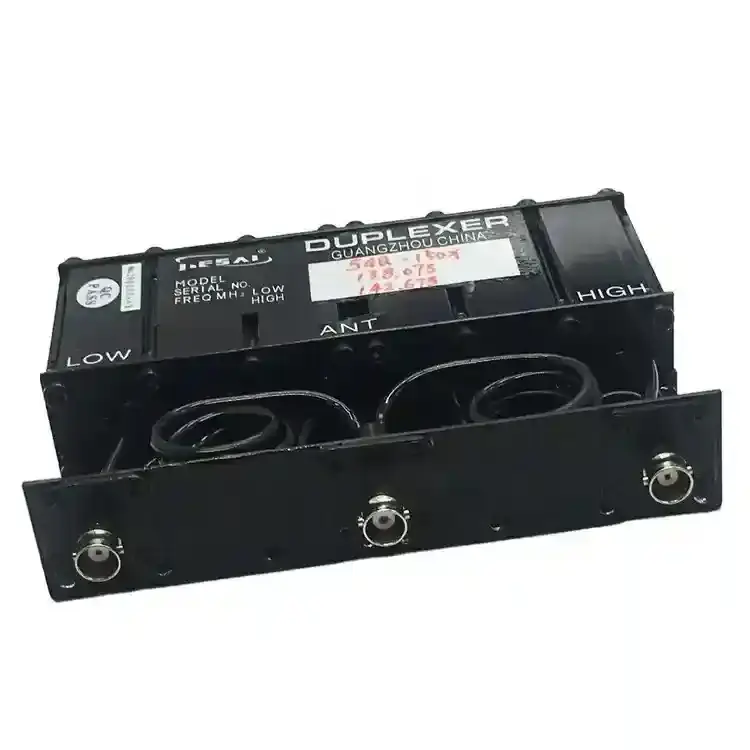

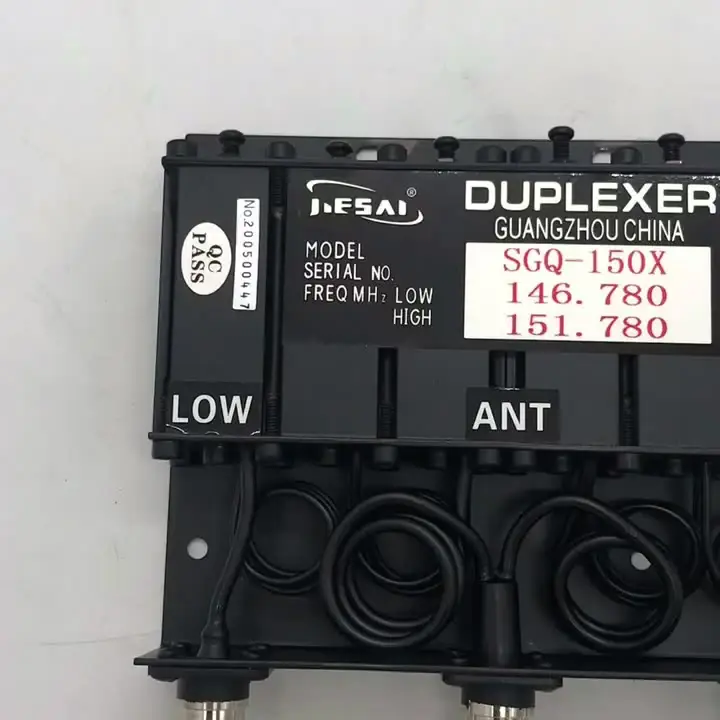

15W VHF 136-180MHz Band Reject Duplexer
Packaging Details: paper box
Supply Ability: 2000 Set/Sets per Month
| Quantity (pieces) | 1 – 10 | 11 – 100 | 101 – 1000 | > 1000 |
| Lead time (days) | 10 | 15 | 30 | To be negotiated |
Frequency range: 66-88MHz,136-180MHz,200-280MHz,330-380MHz,380-520MHz,700MHz,800MHz,900MHz, 1800Mhz,2100Mhz,2500Mhz+
Working Voltage: Can be customized according to the customer's request
Specifications
Part of the product parameters
| Model Number | SGQmore50X |
| Place of Origin | Guangdong China |
| Product Name | Low Power 15W VHF 136more80MHz MINI Band Rejection Duplexer |
| Frequency Range | 136~180MHz |
| VSWR | ≤1.50 |
| Bandwidth | ±200KHz |
| Frequency Spacing | 4more5MHz |
| Insertion Loss | ≤1.2dB |
| Isolation | ≥80dB |
| Maximum Input Power | 15W |
| Normal Impedance | 50 Ohm |
| Connector | N-F/BNC-F/SMA-F |
Purchase details
Shipping
Contact us to negotiate shipping details
Enjoy On-time Dispatch Guarantee.(Your order is protected by On-time Dispatch Guarantee. Upgrade your protection to On-time Delivery Guarantee by selecting the logistics method with “Guaranteed delivery.”)
Payments
Enjoy encrypted and secure payments.
Transactions made through Xinlun.com are encrypted, secure, and processed in as quickly as 2 hours. All major currencies are accepted – pay in your local currency to avoid bank conversion fees.
How to pay for customized products
1. Settle details with supplier
Send an inquiry to the supplier about the product you wish to buy and settle the order details.
2. Confirm order
Review and confirm the order terms drafted by the supplier via My orders > Order details.
Returns & Refunds
EFor unfulfilled, missing, or other product issues View details.
Turboy65 –
Fast delivered and good package.Thanks.
perdidoanonimo –
It works well, Thank you. I am assembling a GMRS repeater ,and you answered some questions I had.
