Uhf 5w Direct Coupling Optical Fiber Broadband Repeater/bda

$2,500.00$2,600.00 (reference)

-2%

The price needs to be renegotiated

UHF 5W Direct Coupling Optical Fiber Broadband Repeater
Uhf 5w Direct Coupling Optical Fiber Broadband Repeater/bda $2,500.00$2,600.00 (reference)

Quick refunds on orders under US $1,000

  • 30 days easy returns
  • Negotiate the pricing, and shipping
  • OEM, Design Service, Buyer Label Offered

UHF Fiber Optic Repeater

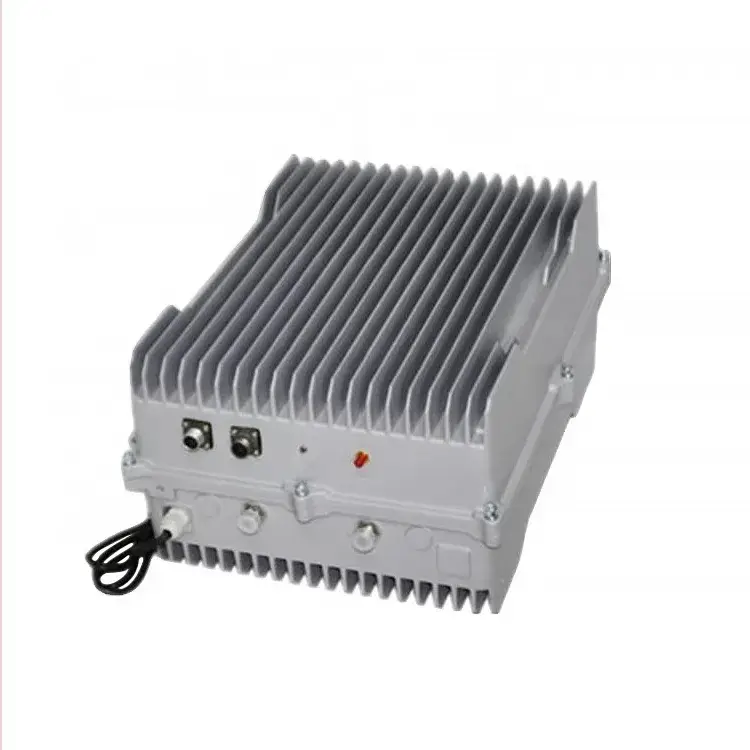

UHF 5W Direct Coupling Optical Fiber Broadband Repeater

Packaging Details: paper box
Supply Ability: 100 Piece/Pieces per Month

Customized logo: (Min. order 100 pieces)
Customized packaging: (Min. order 100 pieces)
Graphic customization: (Min. order 100 pieces)

Frequency range: 66-88MHz,136-180MHz,200-280MHz,330-380MHz,380-520MHz,700MHz,800MHz,900MHz, 1800Mhz,2100Mhz,2500Mhz+
Can be customized according to the customer’s request

Quantity (pieces) 1 – 10 11 – 100 > 100
Lead time (days) 30 45 To be negotiated
Xinlun-Factory-Supplier-Manufacturer

Specifications

Part of the product parameters

Model Number OEM
Type Signal Repeater
Place of Origin Guangdong China
Network None
Product Name UHF 5W Direct Coupling Optical Fiber Broadband Repeater/BDA
Frequency Range 350~520MHz range customized
Output Power 37dBm
Gain 60±3dB
Gain Modulation Range 30dB
Gain Modulation Step 1dB
Noise Factor ≤5dB
Pass Band Ripple ≤3dB
VSWR ≤1.5
Impedance 50 Ohms
RF Connection Mode N/F,50Ω
Type of Fiber Optical Cable Single Mode
Fiber Optical Interface FC/APC
Fiber Optical Loss Max 8dBo
Optical Wavelength 1310nm/1550nm
Optical receiving sensitivity -15dBm
Number of Slave Units Up to 4 Slave Units per 1 Master Unit
Power Supply Mode Master Unit /Slave Unit: AC100V~270V,45~55Hz, European standard
Power Consumption Master Unit: ≤20W;Slave Unit: ≤120W
Operation Temperature -25℃ ~ +55℃
Casing class Master Unit: IP40;Slave Unit: IP65
Machine Weight Master Unit: ≤8kg;Slave Unit: ≤20kg

Dimension
Master Unit: 483*310*88mm(L*W*H)
Indoor Slave Unit(rack mount): 483mm×400mm×180mm
Outdoor Slave Unit(Wall mount)t: 357mm×160mm×453mm
MTBF ≥50000h
