Diplexer Triplexer Quadplexer

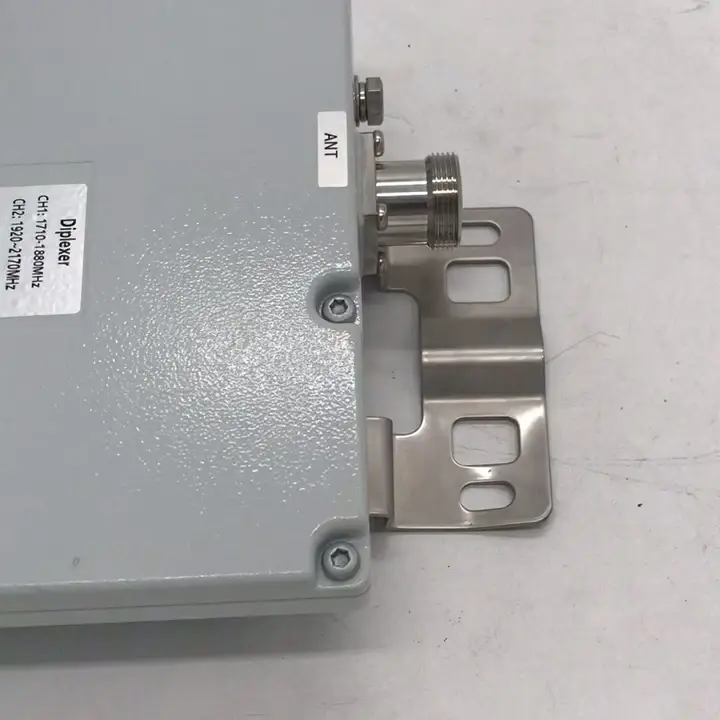

1710-1880/1920-2170MHz Cavity Diplexer/Combiner
Packaging Details: paper box
Supply Ability: 300 Piece/Pieces per Week
Customized logo: (Min. order 100 pieces)
Customized packaging: (Min. order 100 pieces)
Graphic customization: (Min. order 100 pieces)
The Ip66 Outdoor 1710-1880&1920-2170mhz Cavity Combiner for Mounting Hole or Wall Can be customized according to the customer's request.
| Quantity (pieces) | 1 – 10 | 11 – 100 | 101 – 1000 | > 1000 |
| Lead time (days) | 10 | 15 | 30 | To be negotiated |
Specifications
Part of the product parameters
| Place of Origin | Guangdong China |
| Model Number | OEM |
| Product Name | 1710-1880/1920-2170MHz Cavity Combiner for base Station |
| Frequency | 1710-1880/1920-2170MHz |
| Power Rating | 300W |
| Insertion Loss | ≤0.4dB |
| Return loss | over 18dB |
| PIMD3 | ≤-150dBc |
| Impedance | 50Ω |
| Port Type | 7/16 DIN-Female or 4.3-10 DIN-Female |
| Connectors | 7/16 DIN-female |
| Isolation | ≥80dB |
| Lightning protection | 3KA;10/350us pulse |
| DC/AISG transparency | Max 2500mA (Between All Ports) |
Size |
Single unit:201*164*67mm, Double unit:201*164*121mm (without connectors ,without mounting brackets) |
| Weight | Single unit:3kg/ Double unit:6kg |
| Color | White grey |
